2023 Ford Towing Capacity Information & Guide
Great for bringing your biggest toys along for the journey such as your boat or RV, the impressive lineup of Ford SUVs and trucks has the towing capabilities you need to get out and create lasting memories. No matter where you’re headed, there’s a Ford vehicle capable of towing your largest toys or equipment. To help you decide which Ford model is best for your lifestyle and towing needs, Germain Ford of Beavercreek has created this in-depth Ford Towing Capacity Guide.
Ford Truck Towing Capacities

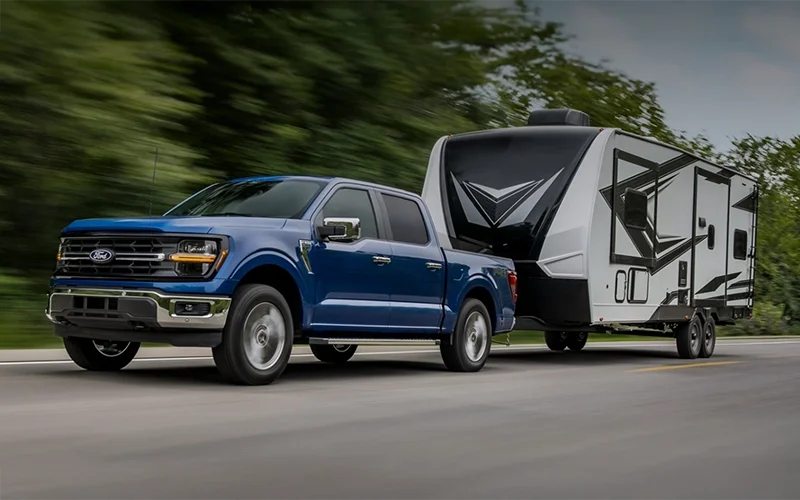

Ford F-150 Towing Capacity
Conquering the most difficult challenges is just one of the many ways the Ford F-150 has earned its legendary reputation. You’ll have your choice of a total of five proven powertrain configurations, making it easier than ever to find an F-150 that’s perfect for your lifestyle. The F-150 is assembled with a military-grade, aluminum-alloy body construction along with a fully-boxed frame composed of 78 percent high-strength steel. Designed to excel at both work and play, the Ford F-150 has the versatility and strength to make towing your largest cargo virtually effortless.
View F-150 Model Review View New F-150 Inventory| Engine | HP @ RPM | Torque @ RPM | Max Towing (lbs) | Max Payload (lbs) |
|---|---|---|---|---|
| 3.3L Ti-VCT V6 | 290 @ 6,500 | 265 lb-ft @ 4,000 | 8,200 | 1,985 |
| 2.7L EcoBoost V6 | 325 @ 5,000 | 400 lb-ft @ 3,000 | 10,100 | 2,480 |
| 3.5L EcoBoost V6 | 400 @ 6,000 | 500 lb-ft @ 3,100 | 14,000 | 3,250 |
| 5.0L Ti-VCT V8 | 400 @ 6,000 | 410 lb-ft @ 4,250 | 13,000 | 3,325 |
| 3.5L PowerBoost Full Hybrid V6 | 430 @ 6,000 | 570 lb-ft @ 3,000 | 12,700 | 2,120 |

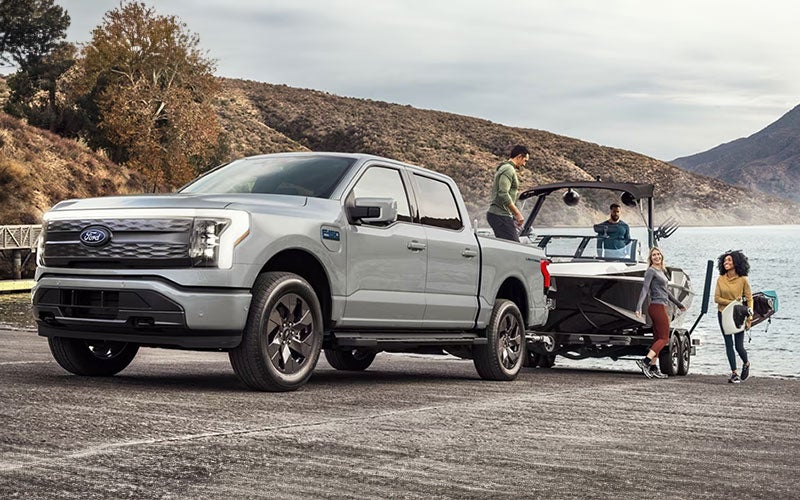

Ford F-150 Lightning Towing Capacity
At a glance, it might be difficult to tell the difference between the Lightning and the standard F-150. That’s by design, the Lightning is all F-150, but still just different enough that we’re giving it its own section. The big difference is the fully electric drivetrain. This comes with a range of up to 320 miles, and enough power to hit 60 mph in under 4 seconds. There are two different battery configurations available, which come with different horsepower ratings and maximum ranges. But both come with a lot of torque, which is exactly what you want for towing. You might have seen the F-150 Lightning launch event where it towed a 1 million-pound train. Well, Ford doesn’t recommend you try that yourself, but recommended towing capacities are still impressive. All of this was enough to make the Lightning MotorTrend’s Truck of the Year for 2023.
View F-150 Lightning Model Review View New F-150 Lightning Inventory| Ford F-150 Lightning | Standard Range Battery | Extended Range Battery |
|---|---|---|
| Horsepower | 462 | 580 |
| Torque | 775 lb-ft | 775 lb-ft |
| Max Payload | 2,235 lbs | 1,952 lbs |
| Max Towing | 7,700 lbs | 10,000 lbs |
Ford Ranger Towing Capacity
The true leader of the midsize pickup truck segment, the capable Ford Ranger is powered by a muscular 2.3-liter EcoBoost 16-valve engine that features direct fuel injection and a twin-scroll turbocharger. This innovative powertrain includes added durability from chain-driven dual overhead cams along with forged steel connecting rods. To help boost both efficiency and response, it’s also paired with a class-exclusive 10-speed automatic transmission. When equipped with the available FX4 Off-Road Package, you’ll also enjoy the benefits of off-road-tuned shocks, all-terrain tires, and the dynamic Terrain Management System™ which debuted on the F-150 Raptor.
View Ranger Model Review View New Ranger Inventory| Ford Ranger | 2.3L EcoBoost® |
|---|---|
| HP @ RPM | 270 @ 5,500 |
| Torque @ RPM | 310 lb-ft @ 3,000 |
| Max Towing (lbs) | 7,500 |
| Max Payload (lbs) | 1,860 |
Ford Super Duty Towing Capacity
For those who work the hardest and play the hardest, the Ford Super Duty sets the benchmark for meeting the needs of both commercial and personal towing customers. Painstakingly tested and proven to conquer the most difficult challenges truck owners will ever face, the Ford Super Duty remains the top choice for those searching for the ultimate in durable, hardworking pickups. A comprehensive selection of models makes it simple to find the Super Duty truck that’s perfect for your specific needs and lifestyle.
View New Super Duty Inventory| Ford Super Duty | |
|---|---|
| Max Horsepower | 500 HP |
| Max Torque | 1,200lb-ft |
| Conventional Towing | Up to 30,000 lbs |
| 5th-Wheel/Gooseneck Towing | Up to 40,000 lbs |

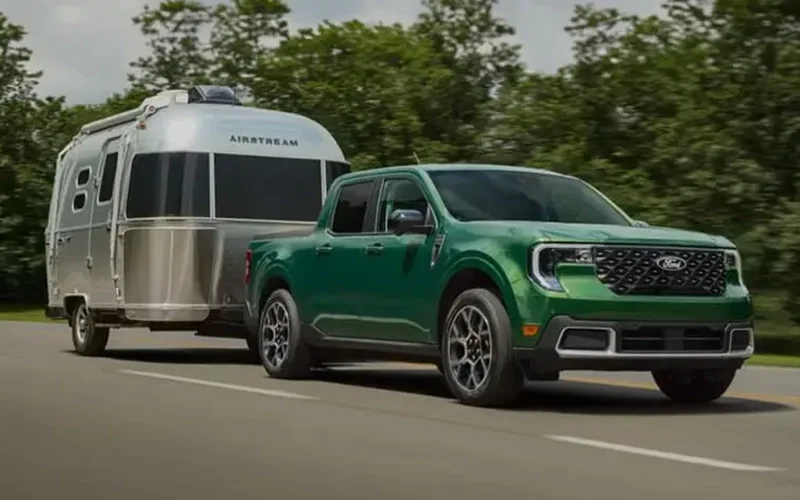

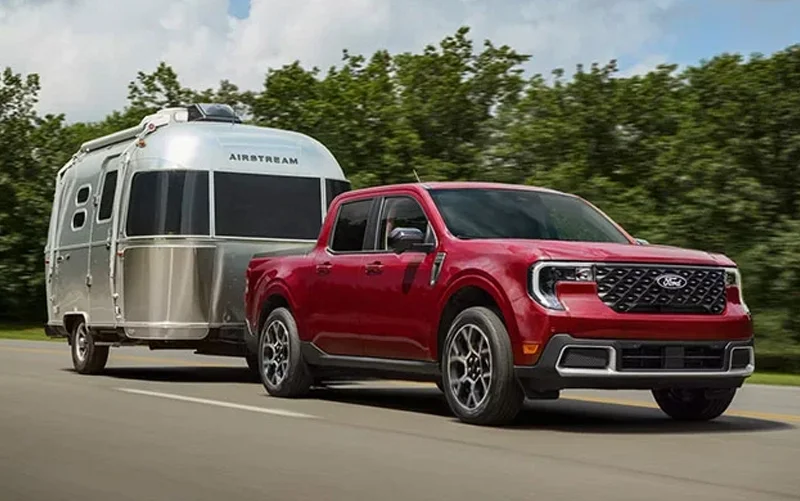

Ford Maverick Towing Capacity
Defying the conventional idea of what a pickup is capable of, the compact Ford Maverick is proof that big things do come in small packages. Not only is the Maverick the very first pickup truck to come standard with a sophisticated 2.5L hybrid powertrain, it’s also available with a robust 2.0L EcoBoost® engine and All-Wheel Drive system for outstanding capability. Upgrade to the available 4K Towing Package and the Maverick is able to pull a remarkable 4,000 pounds (when properly equipped). Paired with forward-thinking features like its innovative FLEXBED™, Ford Integrated Tether System (FITS), and clever under-seat storage bins – the Ford Maverick combines value, versatility, and functionality unlike any other compact pickup truck before it.
View Maverick Model Review View New Maverick Inventory| Ford Maverick | 2.5L Hybrid Powertrain | 2.0-liter EcoBoost® |
|---|---|---|
| HP @ RPM | 191 @ 5,600 | 250 @ 5,500 |
| Torque @ RPM | 155 lb-ft @ 4,000 | 277 lb-ft @ 3,000 |
| Max Towing (lbs) | 2,000 | 4,000 |
| Max Payload (lbs) | 1,500 | 1,500 |
Ford SUV Towing Capacities

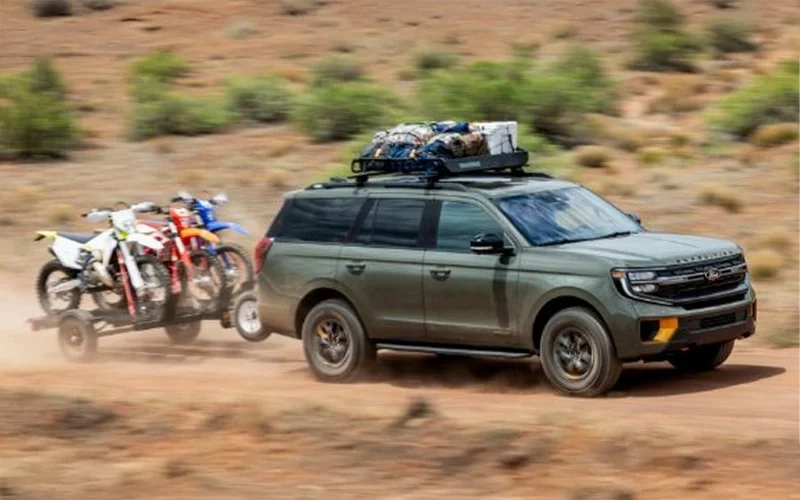

Ford Expedition Towing Capacity
Sitting atop the Ford SUV lineup, the Expedition offers the capability and strength you’d expect from a full-size SUV.
View Expedition Model Review View New Expedition Inventory| Ford Expedition | Expedition 4X2 | Expedition 4X4 | Expedition MAX 4X2 | Expedition MAX 4X4 |
|---|---|---|---|---|
| Standard Engine | 3.5L EcoBoost® V6 with Ti-VCT | 3.5L EcoBoost® V6 with Ti-VCT | 3.5L EcoBoost® V6 with Ti-VCT | 3.5L EcoBoost® V6 with Ti-VCT |
| Curb Weight (lbs) | 5,368 | 5,623 | 5,534 | 5,794 |
| Max Cargo Volume (cu. ft.) | 104.6 | 104.6 | 121.5 | 121.5 |
| Fuel Tank (gallons) | 23.2 | 23.2 | 27.8 | 27.8 |
| Max Towing Capacity (lbs) | 9,300 | 9,200 | 9,000 | 9,000 |

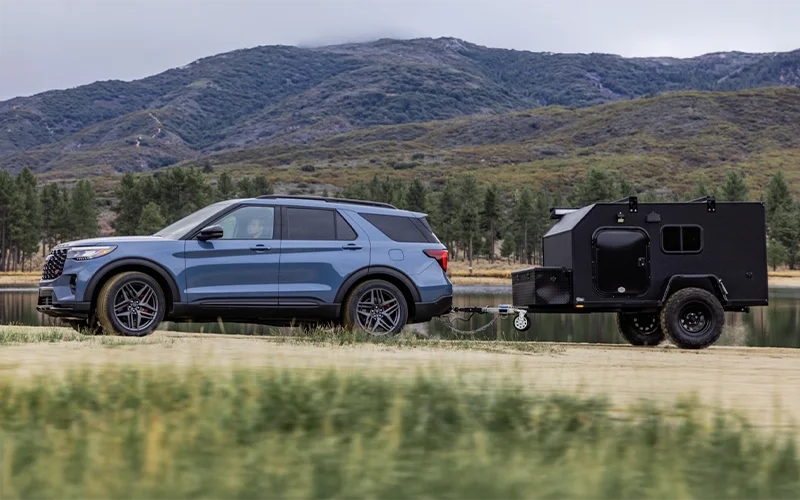

Ford Explorer Towing Capacity
A spacious cabin, bold exterior styling, and go-anywhere performance capabilities are just a few of the reasons why the Ford Explorer has remained an SUV legend for 3 decades.
View Explorer Model Review View New Explorer Inventory| Ford Explorer Engines | Max Towing Capacity |
|---|---|
| 2.3L EcoBoost I4 | 5,300 lbs |
| 3.0L EcoBoost V6 | 5,600 lbs |
| 3.3L HEV V6 | 5,000 lbs |
Ford Edge Towing Capacity
For those who demand only the best from their midsize crossover, the Ford Edge includes a standard eight-speed automatic transmission with active warm-up, Auto Start-Stop Technology, and your choice of two engine options.
View Edge Model Review View New Edge Inventory| Ford Edge Engines | Max Towing Capacity |
|---|---|
| Twin-scroll 2.0L EcoBoost® I-4 (AWD) | 1,500 lbs |
| 2.7L EcoBoost® V6 (AWD) | 3,500 lbs |

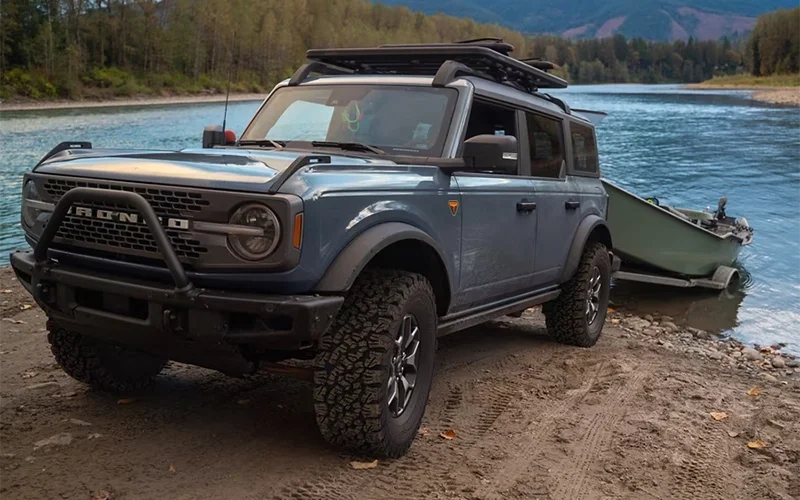

Ford Bronco Towing Capacity
The legend has returned. Off-road enthusiasts can conquer the world’s most inhospitable terrain with confidence behind the wheel of the iconic Ford Bronco. In both 2-door and 4-door configurations, the Bronco is also capable of towing your gear along for the adventure.
View Bronco Model Review View New Bronco Inventory| Ford Bronco Engines | Max Towing - 2-Door (lbs) | Max Towing - 4-Door (lbs) |
|---|---|---|
| 2.3L EcoBoost® I4 | 3,500 | 3,500 |
| 2.7L EcoBoost V6 | 3,500 | 3,500 |
Ford Bronco Sport Towing Capacity
Say hello to the newest member of the compact Ford SUV family. Featuring rugged styling and off-road abilities, the dynamic Bronco Sport has the ability to tow your small boat, jet ski trailer, or motorcycles along for the journey.
View Bronco Sport Model Review View New Bronco Sport Inventory| Ford Bronco Sport Engines | Max Towing Capacity |
|---|---|
| 1.5L EcoBoost® I3 | 2,000 |
| 2.0L EcoBoost I4 | 2,200 |
Ford Escape Towing Capacity
Three powertrain combinations, eye-catching style, and innovative tech are only three categories in which the compact Ford Escape outshines the competition.
View Escape Model Review View New Escape Inventory| Ford Escape Engines | Max Towing Capacity |
|---|---|
| 2.5L I4 Hybrid / PHEV | 1,500 lbs |
| 1.5L EcoBoost I3 | 2,000 lbs |
| 2.0L EcoBoost I4 | 3,500 lbs |
